Automatic Glass Bottle Washer

Our Glass Bottle Washer is a robust and efficient machine designed to clean and sanitize glass bottles for reuse in beverage, dairy, pharmaceutical, and food processing industries. Built with high-grade steel and equipped with multi-stage cleaning systems, it ensures thorough removal of residues, labels, and contaminants while maintaining the integrity of each bottle.

Ideal for both returnable glass bottle operations and hygienic packaging processes, this machine offers consistent performance with minimal water and energy consumption.

Specifications

  • Fully Automatic Glass Bottle Washer with Label Remover for Liquor Bottles, Beer Bottles, Soft Drink Bottles etc.
  • Capacity: 60BPM, 100-120BPM, 150BPM,200BPM, 300BPM and Upto 400BPM.

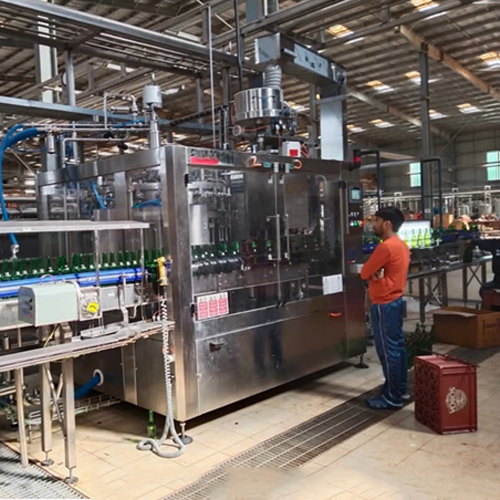

Automatic Glass Bottle Filler & Crowner

CVH Industries manufactures automatic glass bottle filling and sealing machines, offering a range of models for various production capacities. These machines are designed for filling a variety of liquids into glass bottles, including carbonated and still beverages, and can be part of a complete bottling line.

Key Features and Capabilities

  • Production Capacity : CVH machines can handle a wide range of production speeds, from 30 to 250 BPM (bottles per minute).
  • Automation : The machines are fully automatic, ensuring efficient and consistent filling and sealing.
  • Filling Range : They can accommodate different bottle sizes, with filling ranges typically from 200ml to 1liters.
  • Material : CVH machines are typically constructed with stainless steel (SS 304/316) for hygienic and durable operation.
  • Product Compatibility : They are designed to handle various liquids, including carbonated beverages, juices, and other still products.

TUNNEL PASTEURISER

Top 3 Benefits

  • Sustainability
  • Excellent product quality
  • Ergonomics

CVH Tunnel pasteurizers are high-quality, sustainable, ergonomic machines designed for beer, soft drinks, juices, sport drinks, etc. The system is designed to manage fresh water usage, reducing water and steam consumption during the pasteurization control phase, the water to cool down the central tanks is taken from the adjacent tanks, saving fresh water and also optimizes start & stop sequence.

Design Specifications

  • Self-cleaning spray nozzles
  • Equip able with self-cleaning header
  • All the tanks have sloped bottom and man-hole doors
  • Hygienic design
  • High accessibility to the tunnels
  • Top area fully walkable and equipped with removable top covers.
  • Our software is very user friendly and gives clear indications about machine functioning and performance

Water And Beverage Equipment

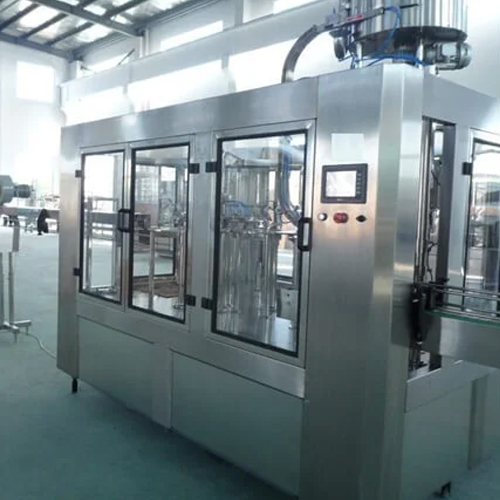

Automatic Monobloc Rinser, Filler and Capper

Our Automatic Monobloc Rinser, Filler and Capper is an integrated solution designed for high-speed, hygienic, and efficient bottling operations. Combining rinsing, filling, and capping in a single compact unit, this machine is ideal for mineral water, carbonated beverages, juices, and other liquid products.

Engineered for precision and ease of operation, it ensures consistent fill levels, secure sealing, and minimal downtime. With stainless steel construction and user-friendly controls, it meets the highest industry standards for performance, hygiene, and durability.

Equipped with PLC-based controls and a touch-screen interface, it allows for seamless adjustments and monitoring, making it user-friendly and efficient for operators. The system is customizable for PET and glass bottles and is available in various output capacities to suit small, medium, or large-scale production needs.

Features & Specifications

  • No Bottle- No Rinsing, Filling, Capping
  • Pressure filling valve with consistent accurate fill levels and without any spillage Magnetic capping head ensures effective capping without cap damage
  • The machine automatically “STOPS” the operation if a bottle is jammed
  • Touch screen PLC control system for easy operation
  • SS304 construction gives excellent appearance and easy sanitation
  • Stainless Steel 304 Construction – Ensures a sleek appearance, long-lasting durability, and easy sanitation.
  • Capacity Available : 60 /100 / 150 /200 /300 Bpm
  • Bottle Volume : 100ml – 2000ml
  • Suitable To Fill : Non Carbonated Drink
  • Inverter : Mitsubishi
  • Plc : Festo – Mitsubishi
  • Touch Screen : Mitsubishi
  • Ac Contactor : Siemens
  • Proximity Switch : Omron
  • Air Cylinder : Airtac

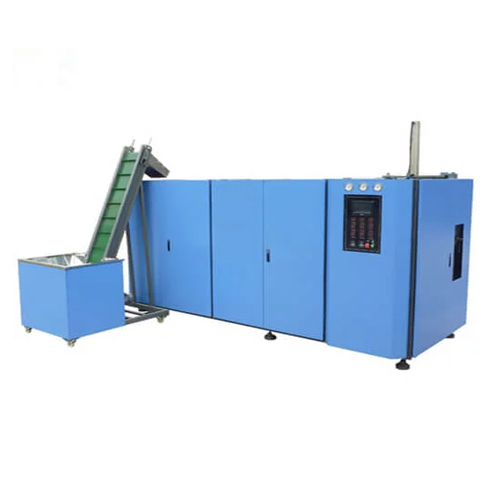

Automatic Pet Stretch Blow Moulding Machine

Our Automatic PET Stretch Blow Moulding Machine is designed to produce high-quality PET bottles with precision, speed, and efficiency.

Features & Specifications

  • Energy Efficient
  • Consistent Performance
  • Low Maintenance
  • User Friendly
  • Easy to Change the moulds
  • No.Of Cavities : 2/4/6/8
  • Capacity Available : 2000 / 4000 /6000 /8000bph
  • Bottle Volume : 200ml – 2000ml
  • Voltage : 380v / 3 Ph / 50hz
  • Blowing Cylinder : Festo – Germany
  • Mould Closing And Opening Cylinder : Smc – Japan
  • Valve : Festo – Germany
  • Oil Lubricator : Festo – Germany
  • Plc : Mitsubishi – Japan
  • Hmi Screen : Mitsubishi – Japan

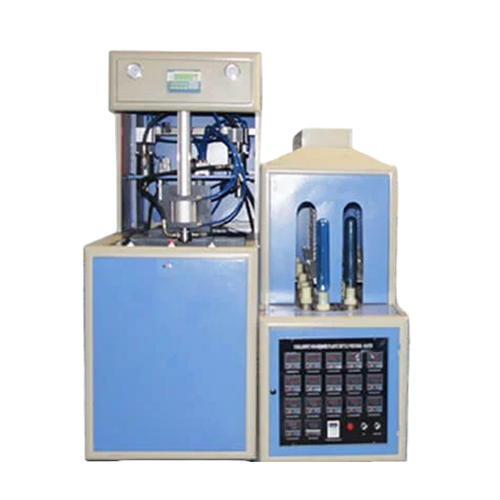

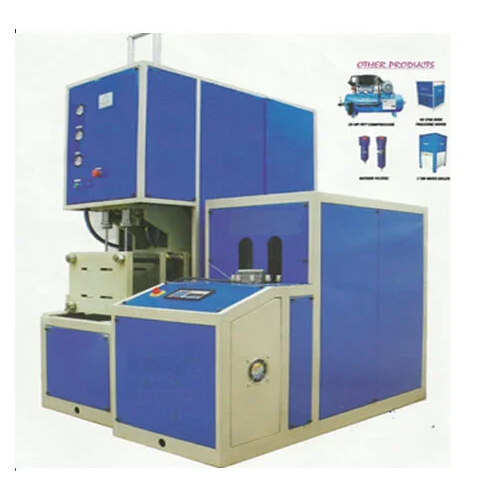

Semi-Automatic PET Stretch Blow Moulding Machine

Our Semi-Automatic PET Stretch Blow Moulding Machine is an ideal solution for small to medium-scale bottle production. Designed to convert PET preforms into high-quality bottles, it offers flexibility, ease of use, and consistent output. Suitable for mineral water, beverages, edible oils, and other liquid packaging, this machine combines manual loading with automated heating and blowing functions for efficient operation at a lower investment cost.

Features & Specifications

  • Energy Efficient
  • Consistent Performance
  • Low Maintenance
  • User Friendly
  • Easy to Change the moulds
  • Bottle Auto drop
  • No.Of Cavities : 2/4
  • Capacity Available : 900/1600bph
  • Bottle Volume : 200ml – 2000ml
  • Voltage : 380v / 3 Ph / 50hz
  • Blowing Cylinder : Festo – Germany
  • Plc : Mitsubishi – Japan

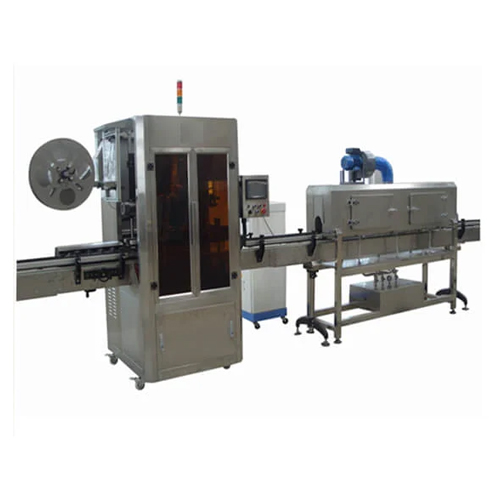

Automatic Sleeve Labelling Machine

The Automatic Sleeve Labelling Machine is a high-speed, precision system designed to apply shrink sleeves to bottles, jars, and containers of various shapes and sizes. Ideal for the water, beverage, food, and cosmetic industries, this machine ensures seamless, wrinkle-free application of full-body or partial-body shrink sleeves.

Specification

  • Power : ɸ 1/220v Or Φ 3/ 380v
  • Speed : 150 / 300bpm
  • Machine Power : 2 Kw
  • Bottle Diameter : Φ25mm – Φ 155mm
  • Cut Length : 30mm-300mm
  • Thickness : 0.035mm – 0.075mm
  • Motor Power (Shrink Tunnel): 12kw – 18kw

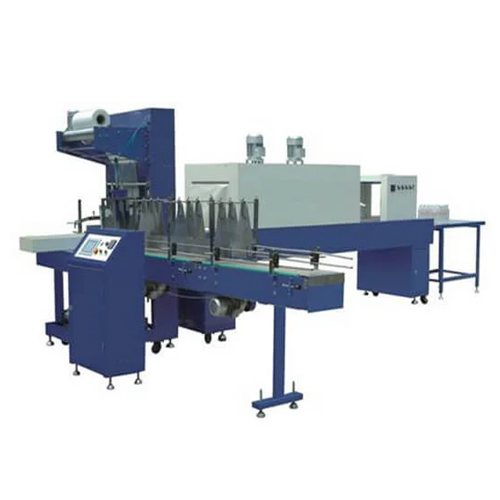

Automatic Multiple Shrink Wrapping Machine

Fully automatic for sorting, wrapping, sealing, shrinking and cooling. The whole process adopts the advanced European technology. The electrical units are chosen from world-known companies. The packed goods is neat, compact and suitable for transportation.

The Automatic Multiple Shrink Wrapping Machine is a robust and high-efficiency system designed for grouping and wrapping multiple products in shrink film for secure and presentable packaging. Perfect for water bottles, cans, cartons, and other uniform products, it automates the process of collation, film wrapping, sealing, and shrinking.

  • Packing Speed : 4 – 6 /8-12 / 16-20 Packs/Min
  • Voltage: 380v/3ph/50hz
  • Material : Pe,Pvc,Pof
  • Thickness Of Wrapping Film: 0.03 – 0.15mm

Semi-Automatic PET Stretch Blow Moulding Machine for 20-Litre Jar

The Semi-Automatic PET Stretch Blow Moulding Machine for 20-Litre Jars is specifically designed to produce high-capacity PET jars commonly used for packaged drinking water. Ideal for small to medium-scale operations, this machine offers a cost-effective solution with consistent performance, easy handling, and minimal maintenance. It combines manual preform loading and jar removal with automated heating and blowing to ensure durability, uniformity, and clarity in every jar.

Specification

  • Capacity : 60/ 90bph
  • Voltage: 380v/3ph/50hz
  • No.Of Cavities : 1 For 5 / 4 /3 Gallon / 2 For 1 Gallon
  • Product Material: Pet

Automatic 20 Litre Jar Filling Machine

Our Automatic 20 Litre Jar Filling Machine is a high-performance system designed to streamline the filling process of large-capacity PET jars used in the packaged drinking water industry. This fully automated machine handles the entire cycle—from jar washing and rinsing to filling and capping—with precision and hygiene.

Built for continuous operation, it ensures high output, reduced labor, and consistent product quality, making it ideal for water bottling plants and commercial jar filling units.

Specifications

  • Capacity Available : 100/200/300/450/600/900/1200bph
  • Bottle Size: 5 Gallon / 6 Gallon
  • Washing Stages Available : 4/5/7/9/12

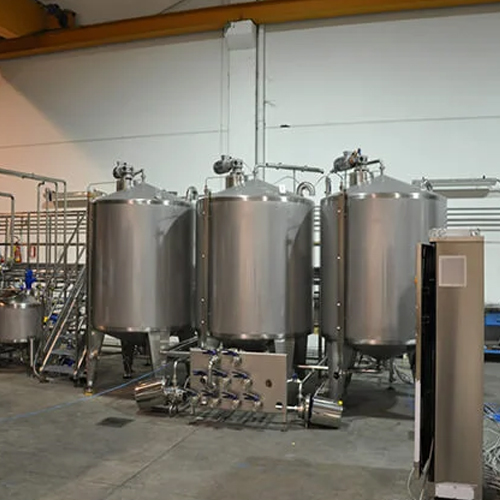

Blending Tanks

Our Blending Tanks are specially designed for uniform mixing and blending of liquids, syrups, concentrates, and additives used in the beverage, dairy, pharmaceutical, and food industries. Built with food-grade stainless steel and precision-engineered agitators, these tanks ensure homogenous mixing, consistent quality, and hygienic operation.

Available in various capacities, our blending tanks can be customized with features like heating, cooling, and insulation to meet diverse production needs.

Specifications

  • Ss Jacketed Tanks With Gear Box Motor And
  • Agitator
  • Capacity: As Per Customer Requirement

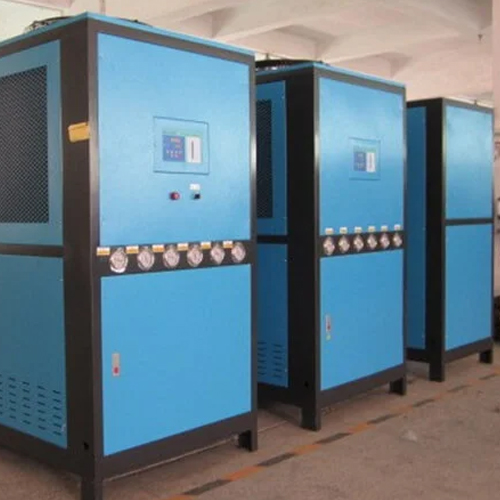

Glycol Chiller With PHE (Plate Heat Exchanger)

Our Glycol Chiller with Plate Heat Exchanger (PHE) is a compact, energy-efficient cooling solution designed to deliver rapid and uniform temperature control for a wide range of industrial applications. Commonly used in the beverage, dairy, brewery, pharmaceutical, and chemical industries, this system combines a high-performance refrigeration unit with a precision-engineered PHE to ensure efficient heat transfer and stable cooling under varying load conditions.

The PHE allows for a larger surface area in a smaller footprint, enabling faster heat exchange with lower energy consumption. Whether you’re cooling water, syrups, wort, milk, or other process liquids, our Chiller with PHE ensures minimal product loss, consistent output temperature, and improved process efficiency.

Specifications

  • Chiller Is Compact, Having Aesthetic and Elegant Finish. The Chiller Is Properly Pressure Tested and Gas Charged
  • Capacity: As Per Customer Requirement

Pasteuriser

Our Pasteuriser is a high-performance thermal processing system designed to heat-treat liquid products such as juices, milk, soft drinks, syrups, and other beverages to eliminate harmful microorganisms while preserving flavor, nutrition, and shelf life. Using precise temperature control and a continuous flow process, the pasteuriser ensures safe, hygienic, and efficient treatment of liquids in compliance with food safety standards.

Suitable for small to large-scale production, our pasteurisers are available in plate-type, tubular, and batch models and can be customized to meet specific processing requirements. Whether for hot filling, extended shelf life, or aseptic packaging, our system ensures consistent results, low energy consumption, and easy integration into your existing production line.

Specifications

  • Total Ss Unit, Tube in Tube, High Temperature Short Time (HTST)
  • Application: Dairy And Fruit Juice Plant
  • And Ultra High Temperature (UHT)

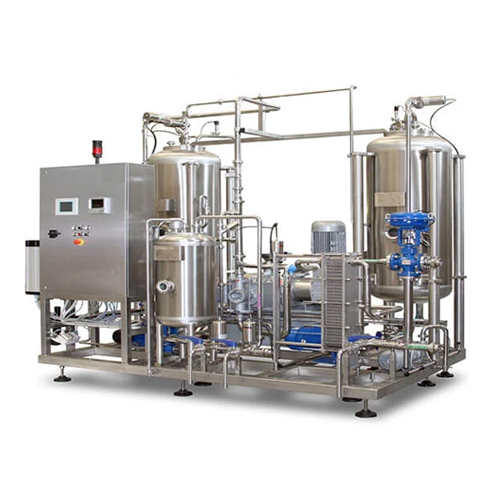

Premix with Carbonator

Our Premix with Carbonator is a highly efficient and compact system engineered for the precise mixing and carbonation of beverages such as carbonated soft drinks, energy drinks, soda water, and flavored beverages. This integrated unit ensures accurate blending of water, syrup, and CO₂, delivering consistent product quality, superior taste, and optimal carbonation levels.

Designed for ease of operation and hygiene, the system is ideal for small to large-scale beverage plants, offering flexibility in output capacity and recipe control.

Specifications

  • MOC Of Injector – SS
  • Accessories – Pre Carbonation Tank and Final Carbonation Tank with Injector CO² System Heating System
  • High Pressure Pump – 2 No’s
  • Capacity: As Per Customer Requirement
  • Application: Carbonated Soft Drink Plant
